AWK-4131A Series

IEEE 802.11a/b/g/n Outdoor Industrial Wireless AP/Bridge/Client

Features & Benefits

2x2 MIMO 802.11a/b/g/n AP/bridge/client
IP68 waterproof housing for outdoor
AeroMag + AeroLink + NAT
Turbo Roaming < 150 ms
500V isolation protection
Up to 1 km LOS (5 GHz)
-40 to 75 C wide temp
PoE powered

Certifications

AWK-4131A IP68 outdoor AP/bridge/client, 802.11n up to 300 Mbps. AeroMag, AeroLink, NAT, Turbo Roaming. Outdoor-rated IP68 metal housing. 500V isolation. Up to 60 clients, 1 km range.

AP/bridge/client
IP68 outdoor
AeroMag + AeroLink
NAT + Turbo Roaming

Up to 300 Mbps
1 km range (5 GHz)
500V isolation
-40 to 75 C

WLAN Interface

Standards	802.11a/b/g/n, 802.11i
Data Rates	802.11n: up to 300 Mbps
Modes	AP, Bridge, Client
Max Clients	60
Security	WEP 64/128, WPA/WPA2 Enterprise/Personal
Long Distance	Up to 1 km LOS (5 GHz)
Antenna	2 RP-SMA female

Ethernet Interface

Ports	1 x 10/100BaseT(X) (RJ45), PoE PD

Software

Features	AeroMag, AeroLink < 300 ms, NAT, Turbo Roaming, DHCP, SNMP, HTTPS, SSH

Power

Input	12 to 48 VDC (dual redundant), PoE PD
Consumption	8 W (max)

Mechanical

Housing/IP	Metal / IP68
Weight	1,050 g (2.31 lb)

Operating Environment

Temperature	-40 to 75 C (-40 to 167 F)
Storage	-40 to 85 C
Humidity	5 to 95%

Warranty

Period	5 years

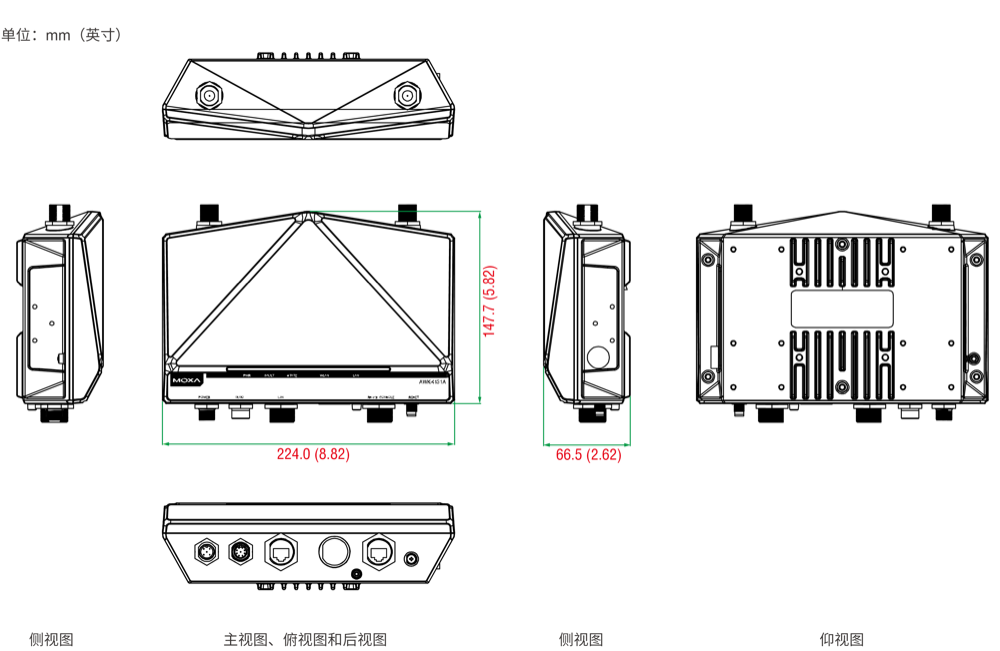

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
AWK-4131A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
AWK-4131A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
AWK-4131A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	Band	Standard	Temp
AWK-4131A-EU	EU	802.11a/b/g/n	-40 to 75 C
AWK-4131A-JP	JP	802.11a/b/g/n	-40 to 75 C
AWK-4131A-US	US	802.11a/b/g/n	-40 to 75 C
