AWK-3262A Series

IEEE 802.11ax Wi-Fi 6 Industrial Wireless AP/Bridge/Client

Features & Benefits

802.11ax Wi-Fi 6 AP/bridge/client
Concurrent dual-band, aggregate 1.775 Gbps
Wi-Fi 6 OFDMA
WPA3 encryption
Turbo Roaming < 150 ms
Band-pass filters
UN model, configurable country code
-40 to 75 C

Certifications

AWK-3262A 3-in-1 AP/bridge/client with 802.11ax Wi-Fi 6, aggregate 1.775 Gbps concurrent dual-band. OFDMA, WPA3, Turbo Roaming. UN model. Dual DC + PoE.

Wi-Fi 6, 1.775 Gbps
Concurrent dual-band
AP/bridge/client
OFDMA + WPA3

Turbo Roaming
Dual DC + PoE
Band-pass filters
-40 to 75 C

WLAN Interface

Standards	2.4 GHz: 802.11ax (1024 QAM), 20/40 MHz; 5 GHz: 802.11ax (1024 QAM), 20/40/80 MHz
Data Rates	2.4 GHz: up to 573.5 Mbps; 5 GHz: up to 1,201 Mbps; Aggregate: 1.775 Gbps
Modes	AP, Bridge, Client (concurrent dual-band)
Security	WEP 64/128, WPA/WPA2/WPA3 Enterprise/Personal

Ethernet Interface

Ports	2 x 10/100/1000BaseT(X) (RJ45), PoE PD

Power

Input	12 to 48 VDC (dual redundant), PoE PD
Consumption	15 W (max)

Mechanical

Housing/IP	Metal / IP30
Weight	800 g (1.76 lb)

Operating Environment

Temperature	Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F)
Storage	-40 to 85 C
Humidity	5 to 95%

Warranty

Period	5 years

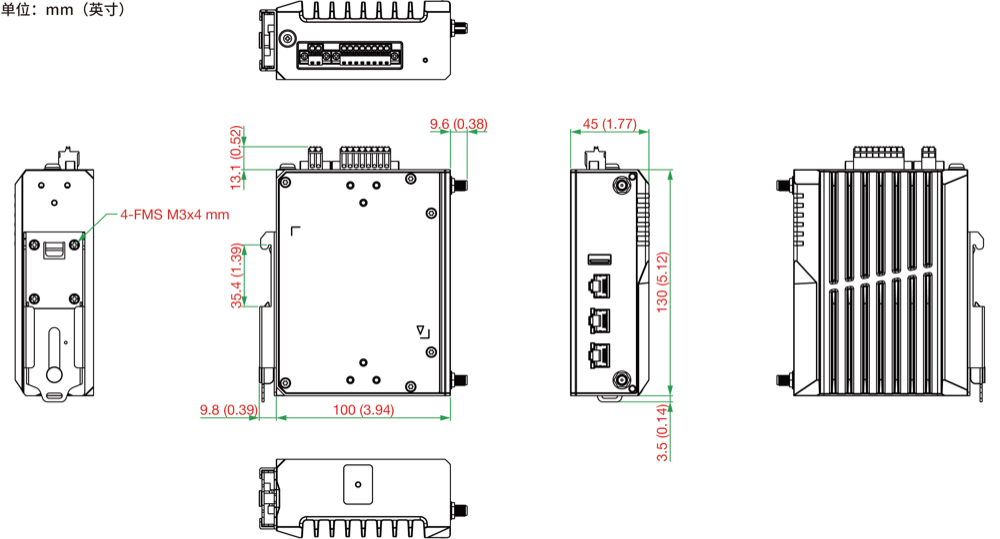

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
AWK-3262A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
AWK-3262A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
AWK-3262A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	Band	Standard	Temp
AWK-3262A-US	US	802.11ax Wi-Fi 6	0 to 60 C
AWK-3262A-US-T	US	802.11ax Wi-Fi 6	-40 to 75 C
AWK-3262A-UN	UN	802.11ax Wi-Fi 6	0 to 60 C
AWK-3262A-UN-T	UN	802.11ax Wi-Fi 6	-40 to 75 C
