AWK-3131A Series
IEEE 802.11a/b/g/n Industrial Wireless AP/Bridge/Client
Features & Benefits
- IEEE 802.11a/b/g/n AP/bridge/client
- AeroMag flash pairing
- AeroLink protection for redundant wireless
- Client-based Turbo Roaming (< 150 ms)
- NAT
- Dual DC power input + PoE
- 500V isolation
- -40 to 75 C wide temp
Certifications
AWK-3131A 3-in-1 AP/bridge/client with 802.11n up to 300 Mbps. AeroMag, AeroLink, NAT, Turbo Roaming. Dual-band 2.4/5 GHz. 500V isolation, PoE powered. Up to 60 clients, long-distance support up to 1 km (5 GHz).
- AP/bridge/client 3-in-1
- AeroMag + AeroLink
- NAT + Turbo Roaming
- Up to 300 Mbps / 60 clients
- Dual DC + PoE
- 500V isolation
- 1 km range (5 GHz)
- -40 to 75 C
WLAN Interface
| Standards | 802.11a/b/g/n, 802.11i |
|---|---|
| Data Rates | 802.11b: 1-11 Mbps; 802.11a/g: 6-54 Mbps; 802.11n: 6.5-300 Mbps |
| Modes | AP, Bridge, Client |
| Max Clients | 60 |
| Security | WEP 64/128, WPA/WPA2 Enterprise/Personal |
| Long Distance | Up to 1 km LOS with high-gain antenna (5 GHz) |
| Antenna | 2 RP-SMA female (external) |
Ethernet Interface
| Ports | 1 x 10/100BaseT(X) (RJ45), PoE PD |
|---|
Software
| Features | AeroMag, AeroLink, NAT, Turbo Roaming, DHCP, SNMPv1/v2c/v3, HTTPS, SSH, VLAN |
|---|---|
| Redundancy | AeroLink < 300 ms |
Power
| Input | 12 to 48 VDC (dual redundant), PoE PD (IEEE 802.3af/at) |
|---|---|
| Consumption | 8 W (max) |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 645 g (1.42 lb) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

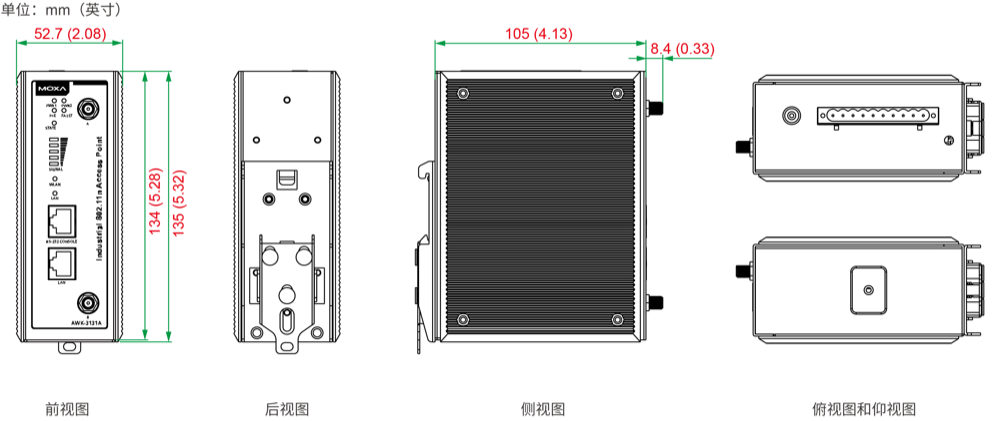

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-3131A-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-3131A-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-3131A-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-3131A-EU | EU | 802.11a/b/g/n | 0 to 60 C |
| AWK-3131A-EU-T | EU | 802.11a/b/g/n | -40 to 75 C |
| AWK-3131A-JP | JP | 802.11a/b/g/n | 0 to 60 C |
| AWK-3131A-JP-T | JP | 802.11a/b/g/n | -40 to 75 C |
| AWK-3131A-US | US | 802.11a/b/g/n | 0 to 60 C |
| AWK-3131A-US-T | US | 802.11a/b/g/n | -40 to 75 C |
