AWK-1161C Series
Entry-Level 1-Port Industrial IEEE 802.11ax Wireless Client
Features & Benefits
- IEEE 802.11ax (Wi-Fi 6), up to 1,201 Mbps
- WPA3 encryption
- UN model
- NAT, Turbo Roaming < 150 ms
- Dual-band 2.4/5 GHz
- OFDMA and TWT
- -40 to 75 C wide temp
Certifications
AWK-1161C wireless client features 802.11ax (Wi-Fi 6) up to 1,201 Mbps. WPA3, NAT, Turbo Roaming, OFDMA/TWT. UN model.
- Wi-Fi 6 up to 1,201 Mbps
- WPA3
- NAT + Turbo Roaming
- OFDMA/TWT
- Dual-band
- Filters
- UN configurable
- -40 to 75 C
WLAN Interface
| Standards | 2.4 GHz: 802.11ax (1024 QAM), 20/40 MHz; 5 GHz: 802.11ax (1024 QAM), 20/40/80 MHz |
|---|---|
| Data Rates | 2.4 GHz: up to 573.5 Mbps; 5 GHz: up to 1,201 Mbps |
| Compatibility | 802.11a/b/g/n/ac |
| Security | WEP 64/128, WPA/WPA2/WPA3 Enterprise/Personal |
Ethernet Interface
| Ports | 2 x 10/100BaseT(X) (RJ45) |
|---|
Serial Interface
| Connector | DB9 male |
|---|---|
| Standards | RS-232, RS-422/485 |
Software
| Features | NAT, Turbo Roaming < 150 ms, DHCP, SNMP, HTTPS, SSH |
|---|
Power
| Input | 12 to 48 VDC |
|---|---|
| Consumption | 9.12 W (max) |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 395 g (0.87 lb) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% |
Warranty
| Period | 5 years |
|---|

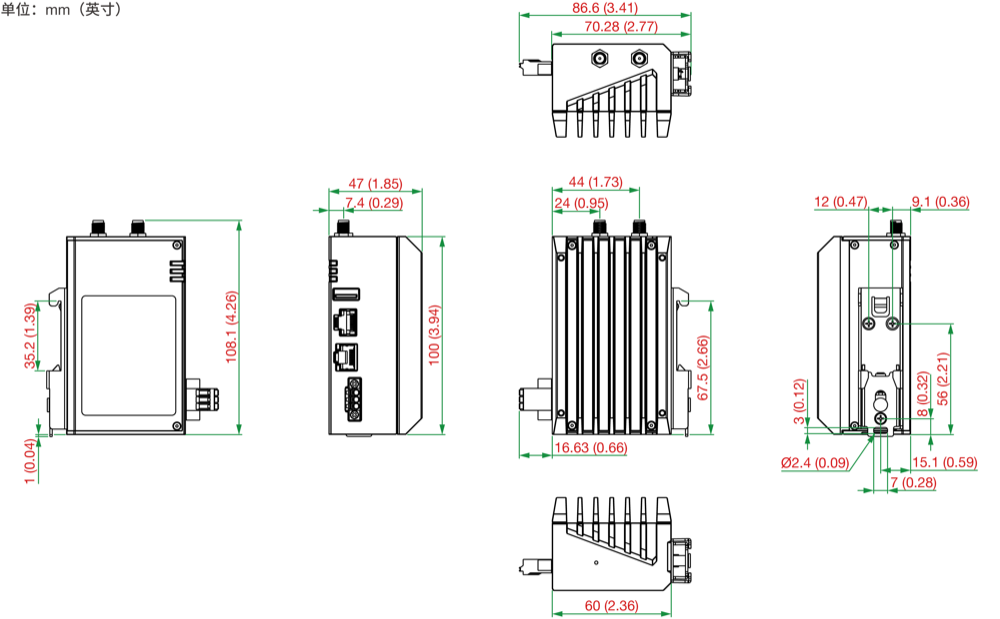

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-1161C-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-1161C-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-1161C-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-1161C-US | US | 802.11ax | 0 to 60 C |
| AWK-1161C-US-T | US | 802.11ax | -40 to 75 C |
| AWK-1161C-UN | UN | 802.11ax | 0 to 60 C |
| AWK-1161C-UN-T | UN | 802.11ax | -40 to 75 C |
