AWK-1161A Series

Entry-Level 1-Port Industrial IEEE 802.11ax Wireless AP

Features & Benefits

IEEE 802.11ax (Wi-Fi 6) high-speed Wi-Fi
Dual-band Wi-Fi, data rates up to 1,201 Mbps
WPA3 encryption
Universal (UN) model with configurable country code
OFDMA and TWT technologies
-40 to 75 C wide temp (T models)

Certifications

The AWK-1161A industrial wireless AP features IEEE 802.11ax (Wi-Fi 6) with data rates up to 1,201 Mbps. WPA3 encryption, dual-band 2.4/5 GHz, OFDMA and TWT. Universal (UN) model.

Wi-Fi 6 up to 1,201 Mbps
WPA3
OFDMA
TWT

Dual-band
Band-pass filters
UN configurable
-40 to 75 C

WLAN Interface

Standards	2.4 GHz: 802.11ax (1024 QAM), 20/40 MHz; 5 GHz: 802.11ax (1024 QAM), 20/40/80 MHz
Data Rates	2.4 GHz: up to 573.5 Mbps; 5 GHz: up to 1,201 Mbps

Ethernet Interface

Ports	1 x 10/100/1000BaseT(X) (RJ45)

Power

Input	12 to 48 VDC
Consumption	8.5 W (max)

Mechanical

Housing/IP	Metal / IP30
Weight	340 g

Operating Environment

Temperature	Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F)
Storage	-40 to 85 C (-40 to 185 F)
Humidity	5 to 95%

Warranty

Period	5 years

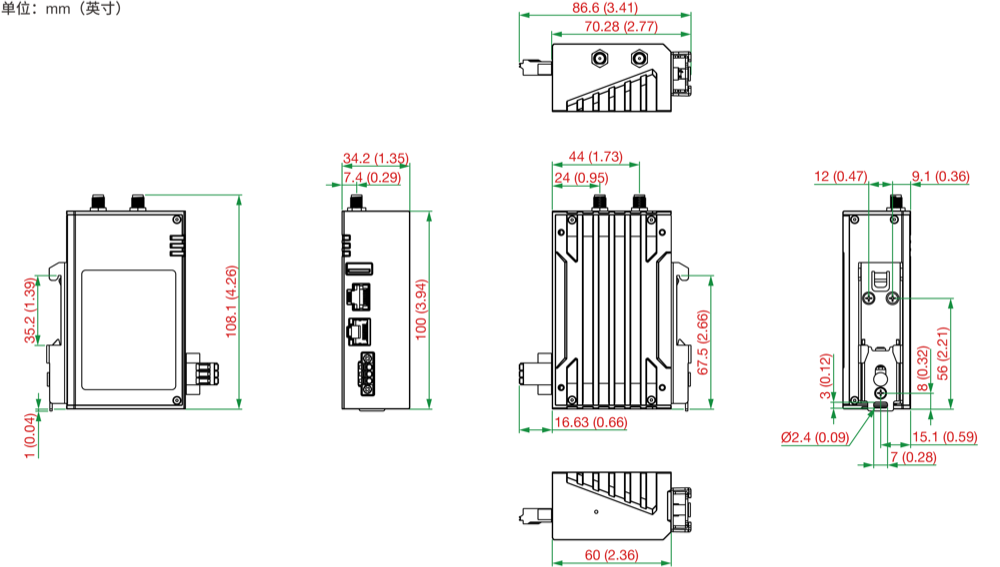

Dimensions

Software, Firmware & Drivers

File Name	Type	Version	Operating System	Release Date
AWK-1161A-series-firmware-v4.1.rom	Firmware	v4.1	—	2024-06-26
AWK-1161A-series-mib-package-v4.1.zip	Software Package	v4.1	—	2024-06-26
AWK-1161A-series-eds-package-v1.0.zip	Software Package	v1.0	—	2024-04-24

Support Documents

File Name	Type	Version	Release Date

Ordering

Model	Band	Standard	Temp
AWK-1161A-US	US	802.11ax	0 to 60 C
AWK-1161A-US-T	US	802.11ax	-40 to 75 C
AWK-1161A-UN	UN	802.11ax	0 to 60 C
AWK-1161A-UN-T	UN	802.11ax	-40 to 75 C
