AWK-1151C Series
IEEE 802.11a/b/g/n/ac Industrial Wireless Client
Features & Benefits
- 802.11a/b/g/n/ac Wave 2 wireless client
- Dual-band Wi-Fi, data rates up to 867 Mbps
- WPA3 encryption for enhanced security
- Universal (UN) model with configurable country code
- NAT for simplified network setup
- Client-based Turbo Roaming (< 150 ms)
- Built-in 2.4 GHz and 5 GHz band-pass filters
- -40 to 75 C operating temperature (T models)
Certifications
The AWK-1151C Series industrial wireless client supports 802.11ac Wave 2 with data rates up to 867 Mbps. WPA3 encryption, Turbo Roaming, NAT, dual-band 2.4/5 GHz. Universal (UN) model with configurable country code. Compact DIN-rail design.
- 802.11ac Wave 2 up to 867 Mbps
- WPA3 encryption
- Turbo Roaming < 150 ms
- NAT one-to-many
- Dual-band 2.4/5 GHz
- Band-pass filters
- Universal country config
- -40 to 75 C wide temp
WLAN Interface
| Standards | 2.4 GHz: 802.11b/g/n (256 QAM); 5 GHz: 802.11a/n/ac Wave 2 (256 QAM) |
|---|---|
| Data Rates | 802.11b: 1-11 Mbps; 802.11a/g: 6-54 Mbps; 802.11n: 6.5-400 Mbps; 802.11ac: 6.5-867 Mbps |
| Security | WEP 64/128, WPA/WPA2/WPA3 Enterprise/Personal |
| Bands (US) | 2.412-2.462 GHz (11 ch); 5.180-5.825 GHz (24 ch) |
| Bands (UN) | 2.412-2.484 GHz (14 ch); 5.180-5.825 GHz (configurable by country) |
| Antenna | 2 RP-SMA female (external) |
Ethernet Interface
| Ports | 2 x 10/100BaseT(X) (RJ45) |
|---|
Serial Interface
| Connector | DB9 male |
|---|---|
| Standards | RS-232, RS-422/485 |
| Baud Rate | 75 bps to 921.6 kbps |
Software
| Features | NAT, DHCP, SNMPv1/v2c/v3, HTTPS, SSH, VLAN |
|---|---|
| Time Service | NTP Client, SNTP Client |
Power
| Input Voltage | 12 to 48 VDC |
|---|---|
| Power Consumption | 9.12 W (max) |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 395 g (0.87 lb) |
| Mounting | DIN-rail, wall (optional kit) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% (non-condensing) |
Warranty
| Period | 5 years |
|---|

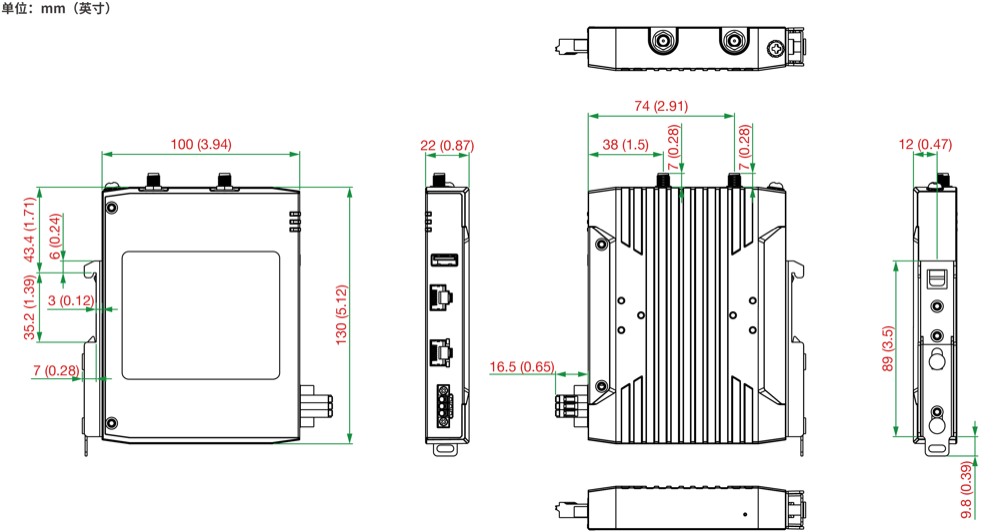

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-1151C-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-1151C-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-1151C-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-1151C-US | US | 802.11a/b/g/n/ac | 0 to 60 C |
| AWK-1151C-US-T | US | 802.11a/b/g/n/ac | -40 to 75 C |
| AWK-1151C-UN | UN | 802.11a/b/g/n/ac | 0 to 60 C |
| AWK-1151C-UN-T | UN | 802.11a/b/g/n/ac | -40 to 75 C |
