AWK-1137C Series
802.11a/b/g/n Industrial Wireless Client with NAT
Features & Benefits
- IEEE 802.11a/b/g/n client
- Multi-interface: 1 serial port + 2 Ethernet ports
- Client-based Turbo Roaming (< 150 ms)
- AeroMag flash pairing for easy setup
- 2x2 MIMO technology
- NAT for simplified network setup
- Integrated antenna and power isolation (500V)
- Vibration-resistant design
Certifications
The AWK-1137C is an industrial wireless client with Ethernet and serial connectivity. Features Turbo Roaming, AeroMag flash pairing, NAT, and 2x2 MIMO. Operates in 2.4 or 5 GHz bands. 500V isolation protection. Wide temp -40 to 75 C (T models).
- 802.11n up to 300 Mbps
- 2x2 MIMO
- Turbo Roaming < 150 ms
- AeroMag flash pairing
- NAT one-to-many
- 2 FE + 1 serial port
- 500V isolation
- -40 to 75 C wide temp
WLAN Interface
| Standards | 802.11a/b/g/n, 802.11i |
|---|---|
| Data Rates | 802.11b: 1-11 Mbps; 802.11a/g: 6-54 Mbps; 802.11n: 6.5-300 Mbps |
| Bands | US: 2.412-2.462 GHz (11 ch), 5.180-5.825 GHz; EU/JP also supported |
| Security | WEP 64/128, WPA/WPA2 Enterprise/Personal |
| Modes | Client, Sniffer |
| Antenna | External, 2 RP-SMA female |
Ethernet Interface
| Ports | 2 x 10/100BaseT(X) (RJ45) |
|---|
Serial Interface
| Connector | DB9 male |
|---|---|
| Standards | RS-232, RS-422/485, RS-232/422/485 |
| Baud Rate | 75 bps to 921.6 kbps |
Software
| Features | NAT, AeroMag, DHCP, SNMPv1/v2c/v3, HTTPS, SSH, VLAN |
|---|---|
| Time Service | NTP Client, SNTP Client |
Power
| Input Voltage | 9 to 30 VDC |
|---|---|
| Power Consumption | 11.7 W (max) |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 470 g (1.03 lb) |
| Mounting | DIN-rail, wall (optional kit) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F); Wide: -40 to 75 C (-40 to 167 F) |
|---|---|
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% (non-condensing) |
Warranty
| Period | 5 years |
|---|

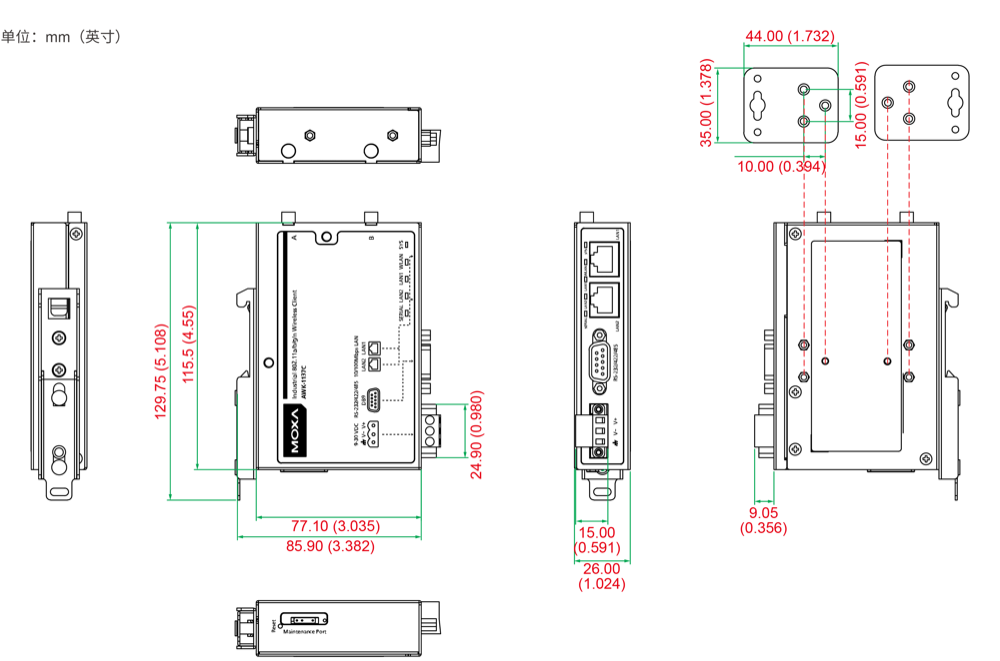

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-1137C-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-1137C-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-1137C-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-1137C-US | US | 802.11a/b/g/n | 0 to 60 C |
| AWK-1137C-US-T | US | 802.11a/b/g/n | -40 to 75 C |
| AWK-1137C-EU | EU | 802.11a/b/g/n | 0 to 60 C |
| AWK-1137C-EU-T | EU | 802.11a/b/g/n | -40 to 75 C |
| AWK-1137C-JP | JP | 802.11a/b/g/n | 0 to 60 C |
| AWK-1137C-JP-T | JP | 802.11a/b/g/n | -40 to 75 C |
