AWK-1132C Series
Entry-Level 802.11a/b/g/n Industrial Wireless Client
Features & Benefits
- IEEE 802.11a/b/g/n client
- Multi-interface: 1 serial port + 2 Ethernet ports
- Client-based Turbo Roaming (ms-level, < 150 ms)
- 2x2 MIMO technology
- Integrated antenna and power isolation protection (500V)
- Vibration-resistant design
- Compact size for industrial applications
Certifications
The AWK-1132C is an ideal client solution for industrial wireless mobile applications. It supports WLAN connectivity for Ethernet and serial devices. Operates in 2.4 or 5 GHz bands, backward compatible with 802.11a/b/g. Integrated antenna and power isolation with 500V insulation protection.
- 802.11n up to 300 Mbps
- 2x2 MIMO
- Turbo Roaming < 150 ms
- 2 x FE + 1 x serial port
- 500V isolation protection
- Vibration-resistant
- IP30 aluminum housing
- 3-year warranty
WLAN Interface
| Standards | 802.11a/b/g/n, 802.11i |
|---|---|
| Data Rates | 802.11b: 1-11 Mbps; 802.11a/g: 6-54 Mbps; 802.11n: 6.5-300 Mbps |
| Bands (US) | 2.412-2.462 GHz (11 ch); 5.180-5.825 GHz (24 ch) |
| Security | WEP 64/128, WPA/WPA2 Enterprise/Personal |
| Modes | Client, Sniffer |
| Antenna | External 2/2 dBi omni, 2 RP-SMA female |
Transmitter Power
| 802.11b | 26ยฑ1.5 dBm @ 1-5.5 Mbps; 25ยฑ1.5 dBm @ 11 Mbps |
|---|---|
| 802.11g | 23ยฑ1.5 dBm @ 6-24 Mbps; 19ยฑ1.5 dBm @ 54 Mbps |
| 802.11a | 23ยฑ1.5 dBm @ 6-24 Mbps; 18ยฑ1.5 dBm @ 54 Mbps |
| 802.11n (2.4 GHz) | 23ยฑ1.5 dBm @ MCS0/8; 17ยฑ1.5 dBm @ MCS7/15 (20 MHz) |
| 802.11n (5 GHz) | 23ยฑ1.5 dBm @ MCS0/8; 18ยฑ1.5 dBm @ MCS7/15 (20 MHz) |
| Max (US) | 2.4 GHz: 26 dBm; 5 GHz: 23 dBm |
Ethernet Interface
| Ports | 2 x 10/100BaseT(X) (RJ45) |
|---|---|
| Standards | IEEE 802.3/802.3u/802.1Q |
Serial Interface
| Connector | DB9 male |
|---|---|
| Standards | RS-232, RS-422/485, RS-232/422/485 |
| Baud Rate | 75 bps to 921.6 kbps |
| Modes | Real COM, RFC2217, TCP Client/Server, UDP |
| Data Log | 256 KB |
Software Features
| Management | DHCP, HTTP, IPv4, LLDP, SNMPv1/v2c/v3, Telnet, VLAN |
|---|---|
| Security | HTTPS/SSL, SSH, RADIUS |
| Time Service | NTP Client, SNTP Client |
| Filter | ICMP, MAC, IP protocol, Port-based |
Power Parameters
| Input Voltage | 9 to 30 VDC |
|---|---|
| Power Consumption | 11.7 W (max) |
| Protection | Reverse polarity |
Mechanical
| Housing/IP | Metal / IP30 |
|---|---|
| Weight | 470 g (1.03 lb) |
| Mounting | DIN-rail, wall (optional kit) |
Operating Environment
| Temperature | Standard: 0 to 60 C (32 to 140 F) |
|---|---|
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Humidity | 5 to 95% (non-condensing) |
MTBF
| Time | 1,125,942 hours |
|---|---|
| Standard | Telcordia SR-332 |
Warranty
| Period | 3 years |
|---|

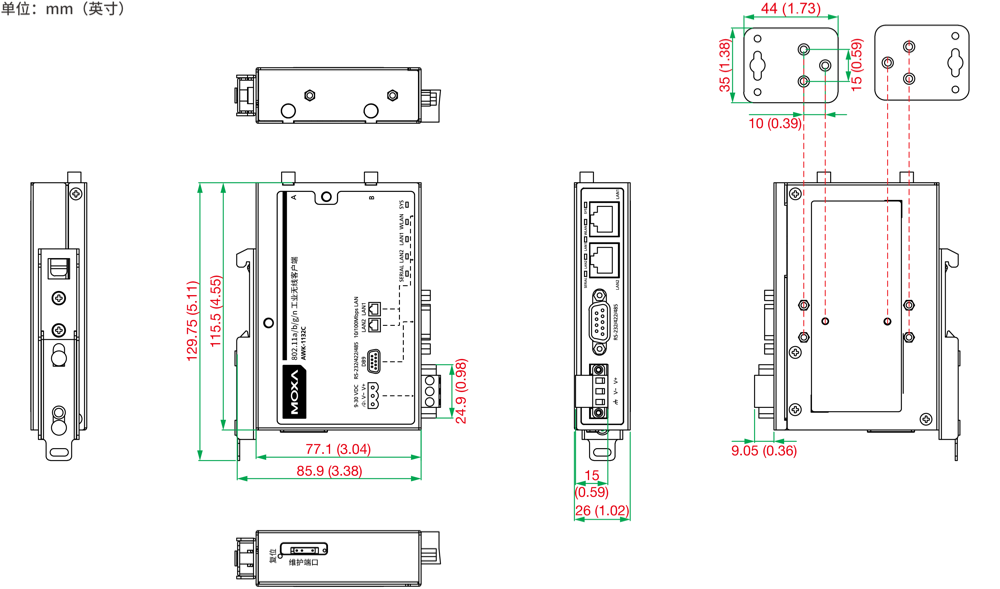

Dimensions
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| AWK-1132C-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| AWK-1132C-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| AWK-1132C-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
Related Content
๐
Application Guide
Building future-proof industrial network infrastructure
๐ฅ
Video
Witness the evolution of industrial networking with Moxa
๐
Application Note
Enhance network performance for IP surveillance systems
๐
Solution Brief
Strengthen network resilience for industrial control systems
Ordering
| Model | Band | Standard | Temp |
|---|---|---|---|
| AWK-1132C-US | US | 802.11a/b/g/n | 0 to 60 C |
