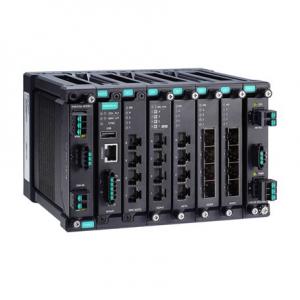

MDS-G4020 Series
Ethernet Interface Pre-installed Modules: 4 embedded fixed Gigabit Ethernet ports Modules: 4 slots for optional 4-port FE/GE modules Slot Combinations: For more information, refer to the LM-7000H module series datasheet Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.3ad for LACP port aggregation, IEEE 802.1Q for VLAN tagging, IEEE 802.1D-2004 for Spanning Tree Protocol (STP), IEEE 802.1w for Rapid Spanning Tree Protocol (RSTP), IEEE 802.1p for Class of Service, IEEE 802.1X for authentication
Ethernet Interface Pre-installed Modules: 4 embedded fixed Gigabit Ethernet ports Modules: 4 slots for optional 4-port FE/GE modules Slot Combinations: For more information, refer to the LM-7000H module series datasheet Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.3ad for LACP port aggregation, IEEE 802.1Q for VLAN tagging, IEEE 802.1D-2004 for Spanning Tree Protocol (STP), IEEE 802.1w for Rapid Spanning Tree Protocol (RSTP), IEEE 802.1p for Class of Service, IEEE 802.1X for authentication
Ethernet Interface
| Pre-installed Modules | 4 embedded fixed Gigabit Ethernet ports Modules: 4 slots for optional 4-port FE/GE modules Slot Combinations: For more information, refer to the LM-7000H module series datasheet |
|---|
Standards
| IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.3ad for LACP port aggregation, IEEE 802.1Q for VLAN tagging, IEEE 802.1D-2004 for Spanning Tree Protocol (STP), IEEE 802.1w for Rapid Spanning Tree Protocol (RSTP), IEEE 802.1p for Class of Service, IEEE 802.1X for authentication |
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| MDS-G4020-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| MDS-G4020-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| MDS-G4020-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
