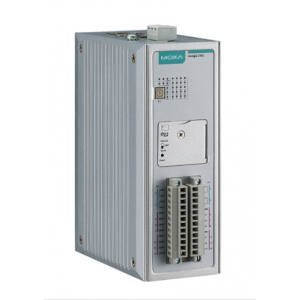

ioLogik 2500 Series
ioLogik 2512 Specifications Input and Output Digital Input: 8 channels Configurable DI/O: 8 channels Isolation Protection: 3k VDC or 2k Vrms Digital Input Sensor Type: Wet contact (NPN or PNP), dry contact Input Leakage: < 1 mA (@ 30 VDC) I/O Type: DI or event counter Dry Contact: On: short to GND Off: open Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC Common Type: 8 points per COM Counter Frequency: 2.5 kHz Digital
ioLogik 2512 Specifications Input and Output Digital Input: 8 channels Configurable DI/O: 8 channels Isolation Protection: 3k VDC or 2k Vrms Digital Input Sensor Type: Wet contact (NPN or PNP), dry contact Input Leakage: < 1 mA (@ 30 VDC) I/O Type: DI or event counter Dry Contact: On: short to GND Off: open Wet Contact (DI to COM): On: 10 to 30 VDC Off: 0 to 3 VDC Common Type: 8 points per COM Counter Frequency: 2.5 kHz Digital
Filtering
| Time Interval | Software selectable Digital Output Type: Sink I/O Type: DO or pulse output Pulse Output Frequency: 5 kHz Overvoltage Protection: 45 VDC Overcurrent Protection: 1.5 A per channel @ 25 ยฐC Thermal Shutdown: 175 ยฐC (min.) Rated Current: 500 mA per channel @ 25 ยฐC ioLogik 2542 Specifications Input and Output Analog Input: 4 channels Configurable DI/O: 12 channels Isolation Protection: 3k VDC or 2k Vrms Analog Input Type: Differential input Resolution: 16 bits I/O Type: Voltage/current (software selectable) Rated Input: ยฑ10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA (with burn-out detection) Accuracy: โข ยฑ0.1% FSR @ 25 ยฐC โข ยฑ0.3% FSR @ -10 and 60 ยฐC โข ยฑ0.5% FSR @ -40 and 75 ยฐC Sampling Rate: โข All channels: 400 samples/sec โข Each channel: 100 samples/sec Input Impedance: > 1M ohms (min.) Built-in Current Input Resistance: 120 ohms Digital Input Sensor Type: Wet contact (NP |
|---|
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| ioLogik-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| ioLogik-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| ioLogik-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
