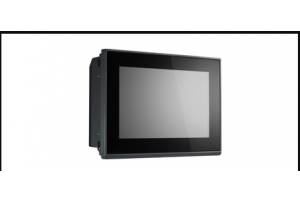

MPC-2070 Series

Computer CPU: Intel® Atom™ E3826 Dual Core 1.46 GHz Processor Operating System: Windows Embedded Standard 7 32/64-bit, Windows 7 Professional 32/64-bit (some models without pre-installed OS) System Memory: 4 GB pre-installed (SDRAM) USB: USB 2.0 hosts x 2, Type A connector, supports system boot Storage: 1 CFast slot + 1 SD card slot (some models without pre-installed storage) Display Panel Size: 7-inch viewable image size Touch: Multi-touch, supports gloved operation Aspect Ratio: 16:9 Pixels: 800 x 480 Pixel Pitch (RGB): 0.1905 (H) x 0.1905 (V) mm Response Time: 5 ms (gray to gray) Contrast Ratio: 600:1 Brightness: 1000 cd/m² (350 cd/m² models available) Note: MPC-2070 brightness levels range from 0 to 10. To extend display life, use brightness level 8 or below when operating above 60°C. Viewing Angle: 140°/120° Active Display Area: 152.4 (H) x 91.44 (V) mm Max Colors: 16.2 million (8-bit color) Ethernet Interface LAN: 2 x 10/100/1000 Mbps auto-negotiating ports (RJ45) Electromagnetic Isolation Protection: Built-in 1.5 kV Serial Port Serial Standard: 2 RS-232/422/485 serial ports, software selectable (DB9 male) Serial Communication Parameters Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS/CTS, XON/XOFF Baud Rate: 50 bps to 115.2 kbps (non-standard baud rates supported; see user manual for details) Serial Signals RS-232: TxD, RxD, DTR, DSR, RTS, CTS, DCD
