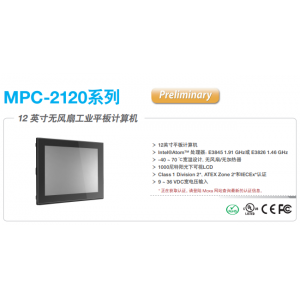

MPC-2120 Series
Computer: CPU Intel Atom E3826 dual-core 1.46 GHz or E3845 quad-core 1.91 GHz; OS Windows Embedded Standard 7 32/64-bit or Windows 7 Professional 32/64-bit; Memory 4 GB pre-installed; USB 2 x USB 2.0 Type A; Storage 1 x CFast slot + 1 x SD card slot. Display: 12.1-inch capacitive multi-touch, 4:3, 1024x768, 0.240 mm pitch, 5 ms response, 700:1 contrast, 1000 cd/mยฒ brightness (recommend level 8 or below above 60ยฐC), 160ยฐ/140ยฐ viewing angle, 245.76 x 184.32 mm active area, 16.2M colors. Ethernet: 2 x 10/100/1000 Mbps RJ45 with 1.5 kV isolation. Serial: 2 x RS-232/422/485 software-selectable (DB9
Computer: CPU Intel Atom E3826 dual-core 1.46 GHz or E3845 quad-core 1.91 GHz; OS Windows Embedded Standard 7 32/64-bit or Windows 7 Professional 32/64-bit; Memory 4 GB pre-installed; USB 2 x USB 2.0 Type A; Storage 1 x CFast slot + 1 x SD card slot. Display: 12.1-inch capacitive multi-touch, 4:3, 1024x768, 0.240 mm pitch, 5 ms response, 700:1 contrast, 1000 cd/mยฒ brightness (recommend level 8 or below above 60ยฐC), 160ยฐ/140ยฐ viewing angle, 245.76 x 184.32 mm active area, 16.2M colors. Ethernet: 2 x 10/100/1000 Mbps RJ45 with 1.5 kV isolation. Serial: 2 x RS-232/422/485 software-selectable (DB9
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| MPC-2120-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| MPC-2120-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| MPC-2120-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
Support Documents
| File Name | Type | Version | Release Date |
|---|
