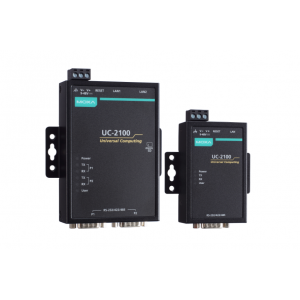

UC-2100 Series
Hardware: Computer: CPU: UC-2101/2102/2104/2111: ARMv7 Cortex-A8 600 MHz; UC-2112: ARMv7 Cortex-A8 1000 MHz; OS (pre-installed): Moxa Industrial Linux (Debian 9, Kernel 4.4); DRAM: UC-2101/2102/2104: 256 MB DDR3 SDRAM; UC-2111/2112: 512 MB DDR3 SDRAM. Storage: Built-in: 8 GB eMMC flash, OS pre-installed; Expansion: SDHC/SDXC slot (UC-2111/2112 only). Other peripherals: TPM: optional v2.0 (SPI interface). Ethernet: LAN: UC-2101/2104: 1 10/100 Mbps auto-negotiation port (RJ45); UC-2102/2111: 2 10/100 Mbps auto-negotiation ports (RJ45); UC-2112: 1 10/100 Mbps and 1 10/100/1000 Mbps auto-negotiati
Hardware: Computer: CPU: UC-2101/2102/2104/2111: ARMv7 Cortex-A8 600 MHz; UC-2112: ARMv7 Cortex-A8 1000 MHz; OS (pre-installed): Moxa Industrial Linux (Debian 9, Kernel 4.4); DRAM: UC-2101/2102/2104: 256 MB DDR3 SDRAM; UC-2111/2112: 512 MB DDR3 SDRAM. Storage: Built-in: 8 GB eMMC flash, OS pre-installed; Expansion: SDHC/SDXC slot (UC-2111/2112 only). Other peripherals: TPM: optional v2.0 (SPI interface). Ethernet: LAN: UC-2101/2104: 1 10/100 Mbps auto-negotiation port (RJ45); UC-2102/2111: 2 10/100 Mbps auto-negotiation ports (RJ45); UC-2112: 1 10/100 Mbps and 1 10/100/1000 Mbps auto-negotiati
Standards
| UC-2101: 1 RS-232/422/485 port, software selectable (DB9) | |
| UC-2111/2112 | 2 RS-232/422/485 ports, software selectable (DB9) |
|---|---|
| Console | RS-232 (TxD, RxD, GND), 4-pin header (115200, n, 8, 1). Serial parameters: Data bits: 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow control | XON/XOFF, ADDCยฎ for RS-485 |
| Baud rate | 50 bps ~ 921.6 kbps. |
Software, Firmware & Drivers
| File Name | Type | Version | Operating System | Release Date |
|---|---|---|---|---|
| UC-2100-series-firmware-v4.1.rom | Firmware | v4.1 | โ | 2024-06-26 |
| UC-2100-series-mib-package-v4.1.zip | Software Package | v4.1 | โ | 2024-06-26 |
| UC-2100-series-eds-package-v1.0.zip | Software Package | v1.0 | โ | 2024-04-24 |
